Module panel [Version: v01]

This documentation describes the Prokee module interface.


Static Methods:
main
int panel::main(int argc,char **argv)
Constructors
create (version 1)
Element *panel::create()
create (version 2)
Element *panel::create(uint16_t width,uint16_t height)
createScrollPanel
Element *panel::createScrollPanel(uint16_t width,uint16_t height)
Destructor
destroy
void panel::destroy(Element *elem)
Drawing
draw
void panel::draw(Element *elem)

Motivation

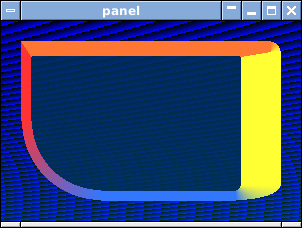

This module creates a panel element.

Static Methods

   main


Runs panel as if it would be called from the command-line.

See Commandline-Interface.

Signature:
int panel::main(int argc,char **argv)

Parameters:
Type Name Direction Description
int argcThe number of command-line parameters.
char **argv[IN]The command-line parameters.

Return value:
Exit status.

   create (version 1)


Creates a empty panel element.

Signature:
Element *panel::create()

Return value:
Pointer to a Element structure.

   create (version 2)


Creates a empty panel element.

Signature:
Element *panel::create(uint16_t width,uint16_t height)

Parameters:
Type Name Direction Description
uint16_t widthThe width of the panel in pixels.
uint16_t heightThe height of the panel in pixels.

Return value:
Pointer to a Element structure.

   createScrollPanel


Creates a empty scroll-panel element.

Signature:
Element *panel::createScrollPanel(uint16_t width,uint16_t height)

Parameters:
Type Name Direction Description
uint16_t widthThe width of the panel in pixels.
uint16_t heightThe height of the panel in pixels.

Return value:
Pointer to a Element structure.

   destroy


Destroys a Text element.

This frees all resources associated with the Text.

Signature:
void panel::destroy(Element *elem)

Parameters:
Type Name Direction Description
Element *elem[IN/OUT]Pointer to a Element structure.

   draw


Draws a Text element to be displayed later.

See explanations about the terms 'paint', 'draw' and 'stage'.

Signature:
void panel::draw(Element *elem)

Parameters:
Type Name Direction Description
Element *elem[IN/OUT]Pointer to a Element structure.
